Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor

Name: Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor
Brand: AFTNTC
Price: 1 USD

China Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor wholesale

Brand Name : AFTNTC

Model Number : MF57-535-3800

Certification : ROHS

Place of Origin : CHINA

MOQ : 4000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 2-4 weeks

Packaging Details : Bulk

Name : Disc NTC Thermistor

Diameter : 6.5mm max

Length : 8mm max

Working temp : -40~+125C

Housing : black epoxy resin

Wire : PTFE high temperature

R25 : 535 Ohm

wire diameter : 0.4mm

Contact Now

Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor

Specification

1.The thermistor head is encapsulated with black epoxy resin, and the wire surface is black PTFE high temperature resistant insulating material, diameter is 0.82mm, the metal core of the conductor is tinned cp wire, and the wire diameter is 0.4mm

2,Thermistor long-term use temperature range (-40~+125)℃;

3,Thermistor package head can withstand 500VAC/5mA/1min withstand voltage test;

4,The surface is smooth, without deformation and defect; the silver layer is bright, without flow marks or exposed bottom or accumulation.;

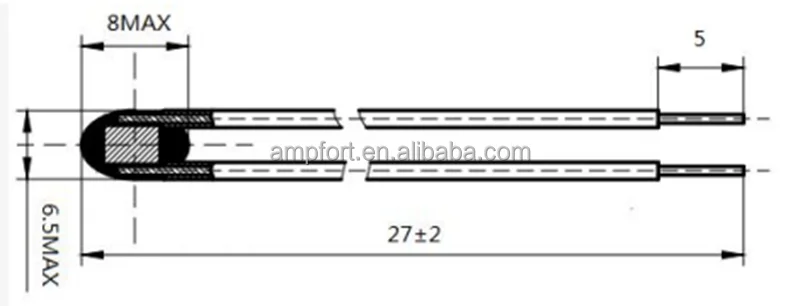

Dimension (mm)

Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor

The main parameters of the resistor meet the requirements in Table 1 below

Parameter(℃)	Mini. Resistance(Ω)	Rated Resistance (Ω)	Max. Resistance(Ω)
0	1500	1650	1755
25	500	535	570
*40	275	290	316
50	189	199	218
*120	21	24.15	27

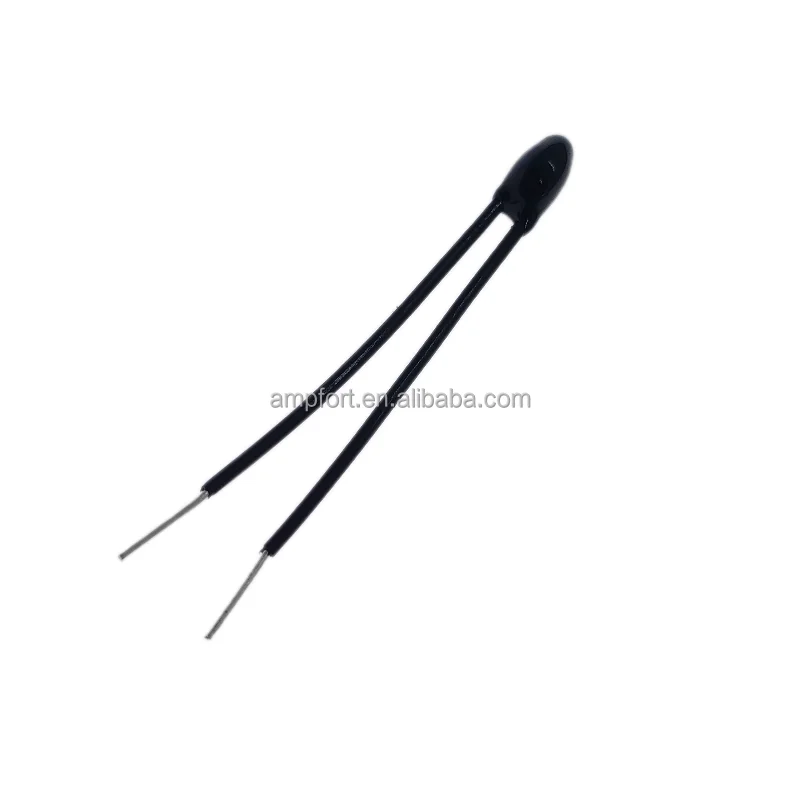

Actual Photos

Epoxy Coated Disc NTC Thermistor For Car Engine Coolant Water Temperature Sensor
